Dog or Cat

appIcon

David Bourne david@boomer.org

Find my other Apps, eBooks and an AppleTV app at https://www.pharmpk.com/MyeBooks.html


27 Apr 2019 v1.0 not submitted to the Apple App Store (just for demonstration)
Screenshot

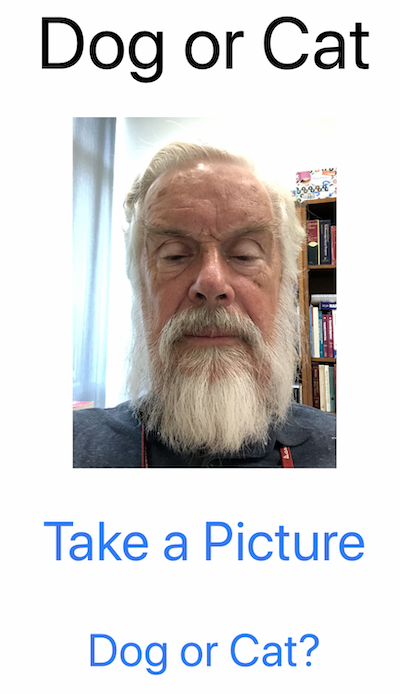

Initial screen
Screenshot

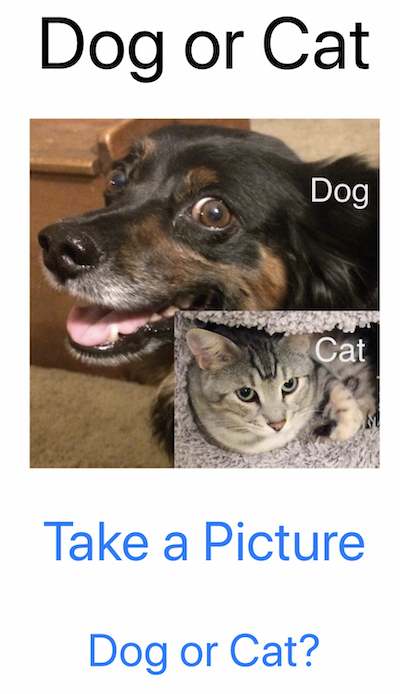

First take a picture and Ask Dog or Cat?
Screenshot

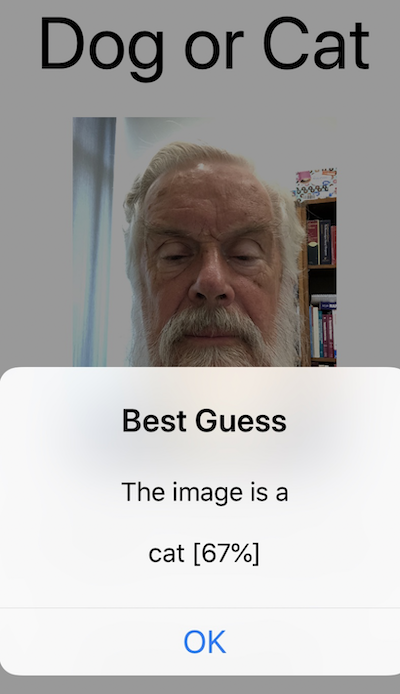

A Cat? Must be all the fur

Dog or Cat is an app demonstrating machine learning (ML). A collection of dog and cat images (Kaggle Cats and Dogs Dataset provided by Microsoft) were classified using turicreate (https://github.com/apple/turicreate). The dataset is subset of a larger set of dog and cat images. Theses images were placed in a folder, Dog or Cat, before running the turicreate classifier.
Python code for the image classification and creation of the ML model

First install turicreate import turicreate as tc

# Load images (Note: you can ignore 'Not a JPEG file' errors)
data = tc.image_analysis.load_images('PetImages', with_path=True)

# From the path-name, create a label column
data['label'] = data['path'].apply(lambda path: 'dog' if '/Dog' in path else 'cat')

# Save the data for future use
data.save('cats-dogs.sframe')

# Load the data
data = tc.SFrame('cats-dogs.sframe')

# Make a train-test split - 80% train and 20% test
train_data, test_data = data.random_split(0.8)

# Automatically pick the right model based on your data.
# Note: Because the dataset is large, model creation may take hours. Ten to fifteen minutes on my iMac
# Increase max_iteration
# Parmeters at https://apple.github.io/turicreate/docs/api/generated/turicreate.image_classifier.create.html
model = tc.image_classifier.create(train_data, target='label')

# Save predictions to an SArray
predictions = model.predict(test_data)

# Evaluate the model and save the results into a dictionary
metrics = model.evaluate(test_data)
print(metrics['accuracy'])

# Save the model for later use in Turi Create
model.save('mymodel.model')

# Export for use in Core ML
model.export_coreml('DogCatClassifier.mlmodel')

Swift code to use this ML model @IBAction func whatIsIt(_ sender: Any)
{
let modelID = 0
UIGraphicsBeginImageContextWithOptions(CGSize(width: modelSize, height: modelSize), true, 1.0)
imageTest.draw(in: CGRect(x: 0, y: 0, width: modelSize, height: modelSize))
let newImage = UIGraphicsGetImageFromCurrentImageContext()!
UIGraphicsEndImageContext()

// Copied from example
let attrs = [kCVPixelBufferCGImageCompatibilityKey: kCFBooleanTrue, kCVPixelBufferCGBitmapContextCompatibilityKey: kCFBooleanTrue] as CFDictionary
var pixelBuffer : CVPixelBuffer?
let status = CVPixelBufferCreate(kCFAllocatorDefault, Int(newImage.size.width), Int(newImage.size.height), kCVPixelFormatType_32ARGB, attrs, &pixelBuffer)
guard (status == kCVReturnSuccess) else { return }

CVPixelBufferLockBaseAddress(pixelBuffer!, CVPixelBufferLockFlags(rawValue: 0))
let pixelData = CVPixelBufferGetBaseAddress(pixelBuffer!)

let rgbColorSpace = CGColorSpaceCreateDeviceRGB()
let context = CGContext(data: pixelData, width: Int(newImage.size.width), height: Int(newImage.size.height), bitsPerComponent: 8, bytesPerRow: CVPixelBufferGetBytesPerRow(pixelBuffer!), space: rgbColorSpace, bitmapInfo: CGImageAlphaInfo.noneSkipFirst.rawValue)

context?.translateBy(x: 0, y: newImage.size.height)
context?.scaleBy(x: 1.0, y: -1.0)

UIGraphicsPushContext(context!)
newImage.draw(in: CGRect(x: 0, y: 0, width: newImage.size.width, height: newImage.size.height))
UIGraphicsPopContext()
CVPixelBufferUnlockBaseAddress(pixelBuffer!, CVPixelBufferLockFlags(rawValue: 0))

model1(modelID, pixelBuffer: (pixelBuffer)!)

print("Image is \(predictionString) [\(probInt)%]")
answerMessage = "\nThe image is a \n\n" + "\(predictionString) [\(probInt)%]\n"

let alert = UIAlertController(title: "Best Guess", message: answerMessage, preferredStyle: UIAlertController.Style.alert)
alert.addAction(UIAlertAction(title: "OK", style: UIAlertAction.Style.default, handler: nil))
self.present(alert, animated: true, completion: nil)
}

func model1(_ modelID: Int, pixelBuffer: CVPixelBuffer)
{
// Dog or Cat Classifier model
let model = DogCatClassifier()
guard let prediction = try? model.prediction(image: pixelBuffer) else { return }
predictionString = prediction.label
let prob = Int(100 * prediction.labelProbability[String(prediction.label)]! )
probInt = prob
}
