Gas Liquid Chromatography (GLC)

GLC Instrumentation

Diagram of GLC System

Fig 24.6.1 Diagram illustrating a Typical GLC System
Redrawn from: Pieper and Rutledge, Laboratory Techniques for Pharmacists, Upjohn 1989, page 20, figure 2

Fig 24.6.2 Steel column installed in Oven

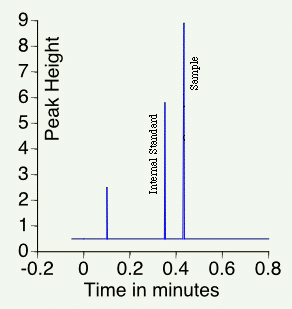

Typical chromatogram

Fig 24.6.3 Typical chromatogram
